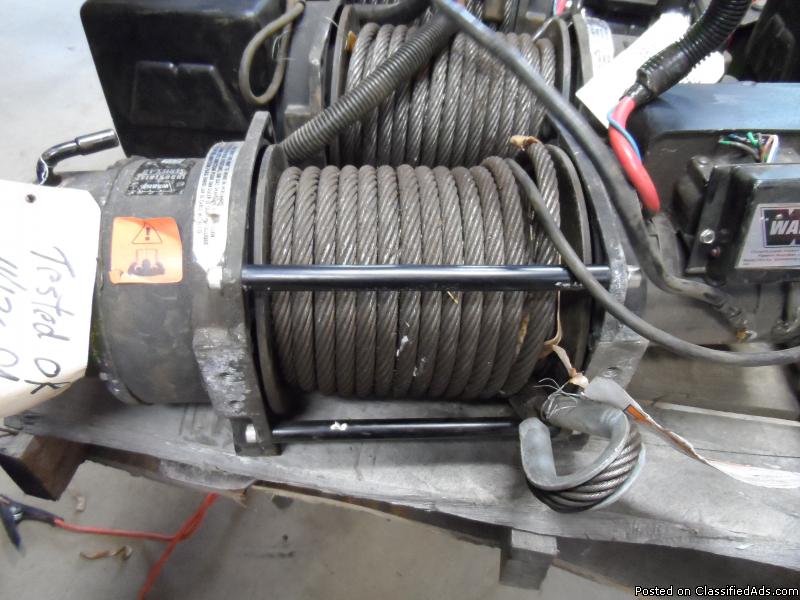

Four Used Warn Series 18 Winches to choose from. Comes with pulley and roller fairlead. Winches go for $2,100 OED. Each winch functions as it should. Shipping is buyer's responsibility. Please call me on my cell phone at 610-750-1831 for questions or interests. More for sale locally.



Heavy Pulling Power of up to 18,000 lbf. (single line)

Dependable high-torque series-wound 24V DC electric motor
Weatherproof industrial contactor control pack
Rugged 32' (10 m) industrial remote control
Disc brake designed for extended power-out use
Thermal overload switch protects motor from overheating
Wire rope, roller fairlead, and tensioner sold separately


18 DC SPECS/PART NUMBERS
Part Number: 72005 - 24 Volt
Rated Pulling Force: 18000 lbf (8165 kgf)
Drum Barrel Diameter: 4.0 in (102 mm)
Drum Flange Diameter: 8.24 in (209 mm)
Distance Between Flanges: 9.95 in (253 mm)
Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm)
Recommended Minimum Wire Rope Breaking Strength: 26600 lbf (12066 kgf)
Approximate Shipping Weight: 103.0 lbs (46.7 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 40 ft (12.2 m)
Mounting Bolt Torque: 35 - 40 ft*lbf (47 - 54 N*m)
Maximum Layers of Wire Rope: 3 (with 1/2" dia. rope)
Gear Reduction: 315:1
Brake Type: Disk
Contactor / Remote Type: Industrial contactor with 33' (10m) heavy duty remote
Standards Compliance:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC

ACCESSORIES
Wire Rope Tension Plate 10'': PN 31149
Fairlead Black 10'': PN 24336
Fairlead Chrome 10'': PN 30859
Remote Clutch Mechanical: PN 38316
Remote Clutch Air: PN 71370
Wire Rope Assembly 1/2''x75' EIPS: PN 77534

24V PERFORMANCE DATA BY LAYER - 1/2" (12.7 mm) dia. rope
Drum Layer Line Load * No Load Line Speed Drum Capacity
lbf kgf kN ft/min m/min ft m
1 18000 8165 80.1 18.5 5.6 20 6.1
2 14727 6680 65.5 22.2 6.8 45 13.7
3 12462 5653 55.4 26.7 8.1 75 22.9

* Never exceed the Rated Pulling Force. Installation of a Rated Capacity Limiter is recommended.
