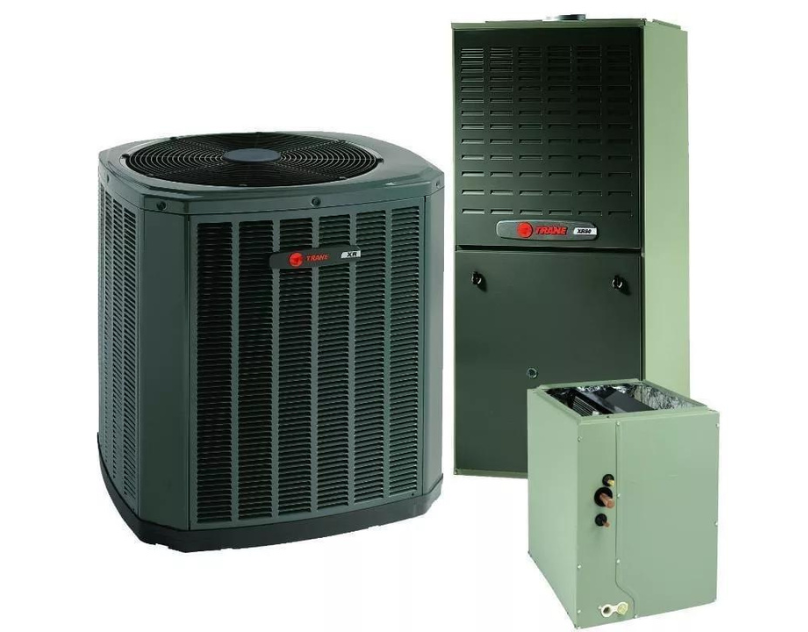

Overview of Trane 3 Ton 18 SEER 33800 BTU Variable Speed 80%  Communicating Gas System | XV18 Series 36000 BTU Air Conditioner Condenser | XC80 80000 BTU Gas Furnace | 4TXC 24000-48000 BTU Cased Coil |R-410a Refrigerant

As an efficient heating and air conditioning solution, this 3 Ton 18 SEER 33800 BTU Split System 80% Variable Speed Communicating System from Trane is champ. This variable speed communicating system has 3 major components – (1) Trane 3 Ton 18 SEER XV18 36000 BTU Variable Speed Air Conditioner Condenser 4TTV8036A1000B, (2) Trane XC80 80000 BTU 80% AFUE Upflow/Horizontal Two Stage Gas Furnace TUD2B080ACV32B and (3) Trane 2 Ton, 3 Ton & 4 Ton 24000 – 48000 BTU 4TXC Convertible Cased Coil 4TXCB006DS3HCA

Specialty of Trane 3 Ton 18 SEER 33800 BTU Variable Stage 80% Communicating System

1.       ComfortLink II Communicating Capability

When matched with the communicating indoor units, the ComfortLink™ II Communicating Technology will be available to connect all of your HVAC component automatically and configures or calibrates for maximum efficiency and performance for years to come.

2.       Trane TrueComfort™

By running at the exact speed needed to keep your home comfortable, Trane’s TruComfort™ systems give you precise comfort. It allows your variable speed compressor, indoor fan, and outdoor fan to vary operating speed and BTU as the temperature outside changes, speeding up or slowing down gradually in as little as 1/10 of one percent increments to keep comfort within 1/2° of the thermostat setting.

3.       Efficient in Performance

With 18 SEER rating, this variable speed air conditioning system is capable of automatically adjusting the itself while ensuring consistent speed to avoid any temperature swings.

4.       Durable Built

This 3 Ton Communicating HVAC system was rigorously tested and tortured to ensure it hold itself even in the toughest situation.

5.       Quiet In Operation

The whole HVAC system works surprisingly silently and doesn’t create noise more than only 4dB. You won’t even notice if it’s operating or not.

6.       Fresh, Clean & Healthy Air

By adding Trane CleanEffects™ to your HVAC system, you can ensure a filtration system that doesn’t allow pollen, dust, and other unwanted particles inside your home, thus ensures healthy, fresh and clean airflow inside your home.

Trane 3 Ton 18 SEER V/S 80% Communicating System

Nominal Capacity3 Tons

Stages2

SEER Rating18 SEER

EER Rating12.5 EER

Capacity33800 BTU

AC Condenser unitTrane 4TTV8036A1000B

Gas Furnace unitTrane TUD2B080ACV32B

Cased Coil unitTrane 4TXCB004DS3HCA

I.                    Trane 3 Ton 18 SEER XV18 36000 BTU Variable Speed Air Conditioner Condenser 4TTV8036A1000B

1. Corrosion-Resistant Weatherguard Fasteners
2. Quick-Sess Cabinet with Full Coil Protection
3. Full-Side Louvered Panels
4. Made from premium materials for longevity
5. DuraTuff Non-Corrosive Base Pan
6. Advanced CleanEffects™ air filtration system ensuring healthier airflow
7. Spine Fin Coil
8. Premium Grey Finish
9. Climatuff Scroll Compressor for day-long quiet operation & cost-efficiency

AC Condenser Specifications

Nominal Capacity3 Ton

Cooling Capacity36000 BTU

CompressorCLIMATUFF®- SCROLL

CoilSPINE FIN™

Electrical Data

Voltage208/230 Volts

Phase1

Frequency60 Hz

Minimum Circuity Ampacity18 Amp

Breaker Circuit Prot. Rtg. (Maximum)25 Amp

Dimensions

Line Size – IN. O.D. Gas3/4 Inch

Line Size – IN. O.D. Liquid3/8 Inch

Height41 Inch

Width33 Inch

Depth30 Inch

Weight

Shipping Weight228 Pound (s)

II.                  Trane XC80 80000 BTU 80% AFUE Upflow/Horizontal Two Stage Gas Furnace TUD2B080ACV32B

1. Advanced CleanEffects™ air filtration system can be added for a healthier airflow
2. Patented Vortica® II Blower works quietly while making the heating unit efficient
3. Formed Steel Door with a Smoked Acrylic View Windows offers an attractive appearance
4. Aluminized Steel Heat Exchanger for efficient heat exchange & resists corrosion
5. Heavy Steel Insulated Cabinet for durability
6. Silicon Nitride Hot Surface Igniter that provides reliable ignition system to extend
7. Multi-Port In-Shot Burners Shape up the flame cone properly to provide maximum efficiency by using less fuel

Gas Furnace General Specifications

Capacity80000 BTU

AFUE80%

Gas Valve Stages2 Stages

Motor Horsepower1/2 HP

Minimum Circuity Ampacity7.5 Amp

Maximum Overcurrent Protection15 Amp

Dimensions (Crated)

Height41.75 Inch

Width19.5 Inch

Depth30.5 Inch

Weight

Weight132 Pound

Shipping Weight142 Pound
