What is it for?
This machine is widely used in the detection of meat, mushrooms, candy, drinks, food, fruits, vegetables, dairy products, aquatic products, health products, metallic impurities in chemicals, rubber, plastics, textiles, leather, chemical fiber, toys, detection of metallic impurities in pharmaceuticals, biological products, cosmetics, gifts, packaging, papers, and so on.

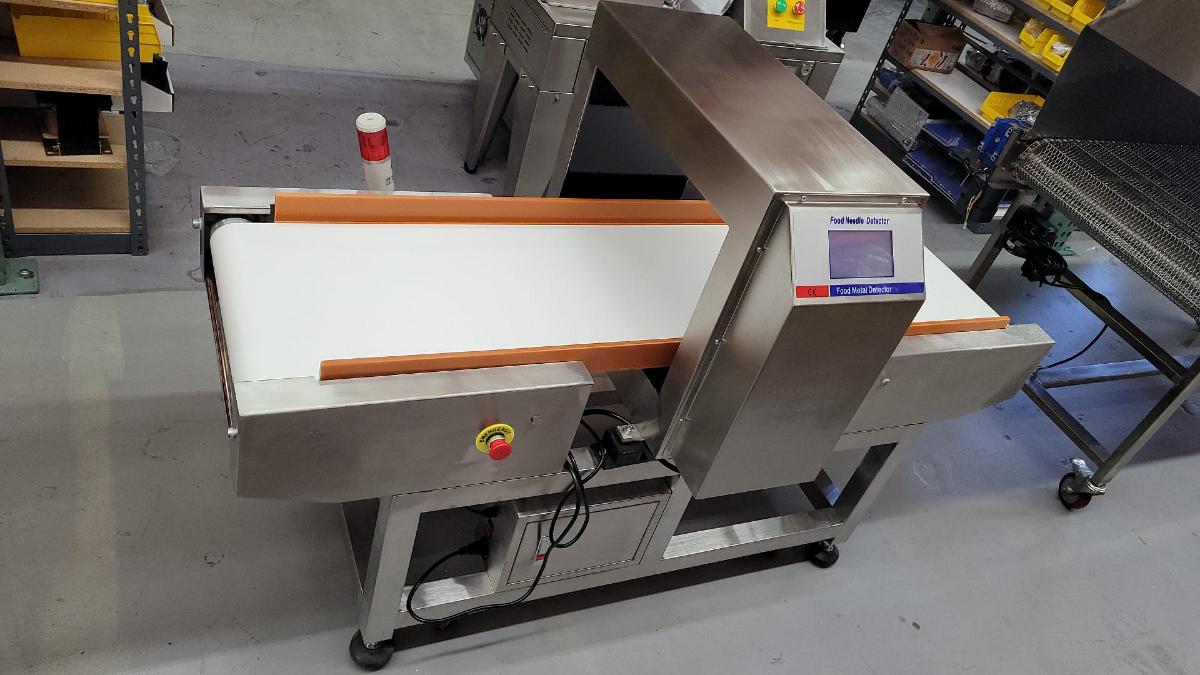

Metal Detector Pro 300mm x 400mm #36955

Comes With:
5ft Food Grade Conveyor
Detection tunnel W-17" x 11.8"
4 x Adjustable Height Legs
4 x Caster Wheels
Touch Screen Control Pannel
1 x Alarm siren
1x E-Stop
1x Power Cable

Product Parameter:
Metal detector material is SS304
Detecting Method: Magnetic induction
Detecting width: 17inch/ 43.18CM / 431mm (We can also customize other sizes)
Detecting height:11.8inch / 29.9cm / 300mm (We can customize other sizes)
Sensitivity adjust:0-9
Detecting Sensitivity: 0.6mm-3.0mm iron ball (Fe)
1.2mm-5.0mm non-fe (SUS)
Alarm Method: Buzzer & LED indicator and shutdown automatically
Conveyor Belt Speed:40m/min Conveyor Lenth 5feet
Power Supply: AC100-265V,50-60Hz (can be made as required) Stock power source AC120V 1Pase 15amp
Dimension size: 160(L)75(W)(90-120)(H)cm
Package size: 175*88*110cm, about 230Kg, with wooden case packing

Performance:
Dual-loop design can be detected separately iron and non-ferrous metal impurities, the high detection sensitivity can be separately adjusted to operate a very convenient and can detect food packaging aluminum platinum.
Conveyor and pallet assembly used in the U.S. "FDA" standards of white non-toxic materials.
Detection accuracy over the corresponding provisions of HACCP system Detect indicators.
Can add weighing machines, sorting machines to combine and form a pipeline that automatically detects & weighs.
Production line can be used to connect the implementation of an automatic detection pipeline.
Monitor the use of sound and light alarms, automatically exclude or shut down, the operational use of an extremely reliable and user-friendly system.
The Machine is made of stainless steel material, anti-corrosion, easy to clean (which can be required in accordance with the ordinary customers of steel stainless steel materials may be appropriate to reduce costs).
