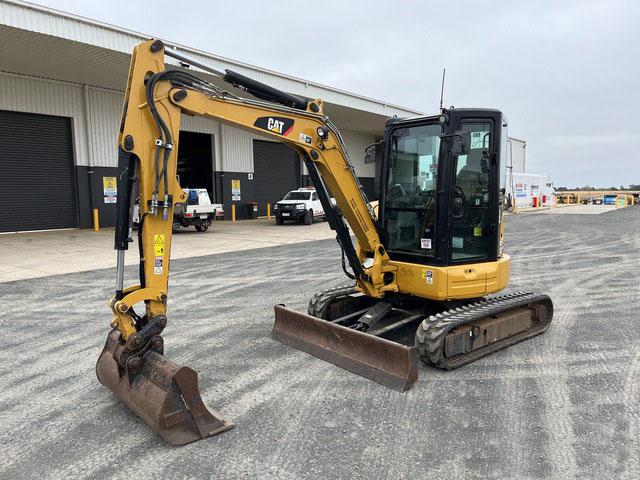

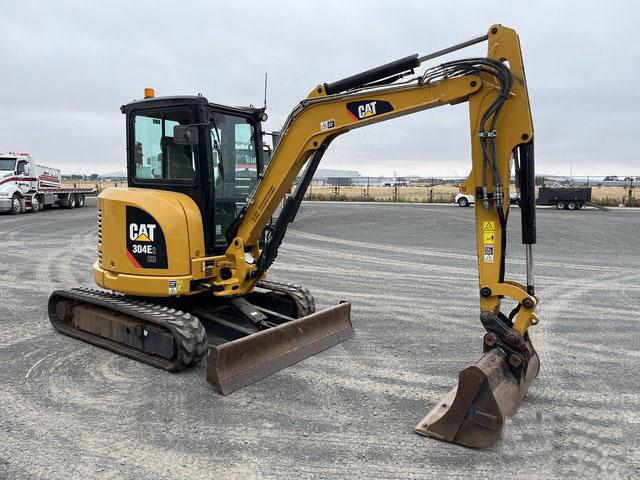

Dimensions
Dimensions - Long Stick
Vertical Wall
101in

Boom Height - Shipping Position
70in

Boom In Reach
87in

Boom Swing - Left
26in

Boom Swing - Right
29in

Dig Depth
135in

Maximum Blade Depth
19in

Maximum Blade Height
16in

Maximum Dig Height
200in

Maximum Dump Clearance
145in

Maximum Reach
220in

Maximum Reach - Ground Level
215in

O/A Shipping Height
98in

O/A Shipping Length
194in

O/A Track Width
77in

O/A Undercarriage Length
87in

Swing Bearing - Height
22in

Tail Swing
38in

Track Belt/Shoe Width
14in

Dimensions - Standard Stick
Swing Bearing - Height
22in

Maximum Reach - Ground Level
206in

Maximum Dump Clearance
141in

O/A Undercarriage Length
87in

Maximum Reach
211in

Boom In Reach
83in

O/A Shipping Height
98in

Tail Swing
38in

Boom Swing - Left
26in

O/A Shipping Length
190in

Boom Swing - Right
29in

Dig Depth
123in

Vertical Wall
95in

Maximum Blade Depth
19in

O/A Track Width
77in

Maximum Blade Height
16in

Boom Height - Shipping Position
58in

Maximum Dig Height
196in

Track Belt/Shoe Width
14in

Undercarriage
Track Roller Type
Center Flange

Number Of Carrier Rollers
1

Number Of Track Rollers
4


Swing System
Machine Swing Speed
10rpm

 Automatic swing brake, spring applied, hydraulic release.

Boom Swing - Left - Without Stop*
70 degrees

Boom Swing - Left - With Stop*
55 degrees

Engine
Net Power
40.2hp

Displacement
146cu in

Bore
3.4in

Stroke
4in

Emissions
 Meets U.S. EPA Tier 4 Final/EU Stage IIIA emission standards.

 Gross Power - Iso 14396
41.8hp

Rated Net Power - 2,200 Rpm - Iso 9249/Eec 80/1269
40.2hp

Operational
Operating Weight
8996lb

Blade
Height
12.8in

Width
6.4ft in

Hydraulic System
Hydraulic System Type
Load Sensing Hydraulics with Variable Displacement Piston Pump

Blade
Lift Height
15.7in

Dig Depth
18.5in

Hydraulic System
Operating Pressure - Swing
3132 psi

Operating Pressure - Equipment
3553 psi

Operating Pressure - Travel
3553 psi

Digging Force - Stick - Standard
4856lb

Digging Force - Stick - Long
4384lb

Digging Force - Bucket
8498lb

Pump Flow At 2,200 Rpm
26.4 gal/min

Auxiliary Circuit - Secondary (174 Bar/2,524 Psi)
6.6 gal/min

Auxiliary Circuit - Primary (186 Bar/2,734 Psi)
18.5 gal/min

Operating Specifications
Stick Length - Standard
52in

Stick Length - Long
64in

Service Refill Capacities
Cooling System
1.5gal

Fuel Tank
12.2gal

Hydraulic Tank
11.2gal

Hydraulic System
17.2gal

Engine Oil
2.5gal

Cab
Dynamic Operator Sound Pressure Level (Iso 6396:2008)
81 dB(A)

Exterior Sound Power Level - Iso 6395:2008*
96 dB(A)

Note
*European Union Directive 2000/14/EC

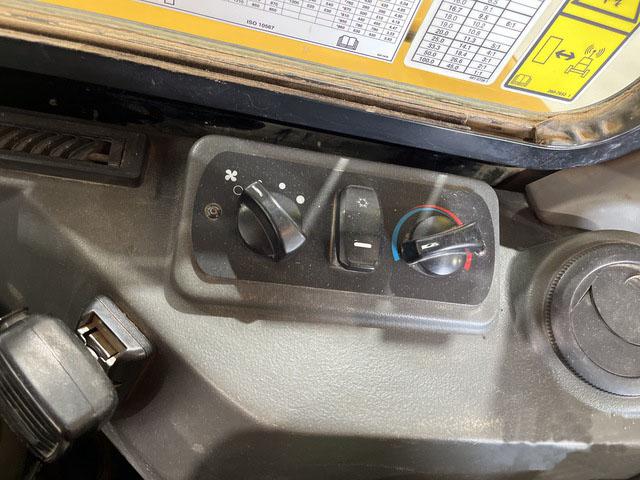

Air Conditioning System
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.4 metric tonnes.
